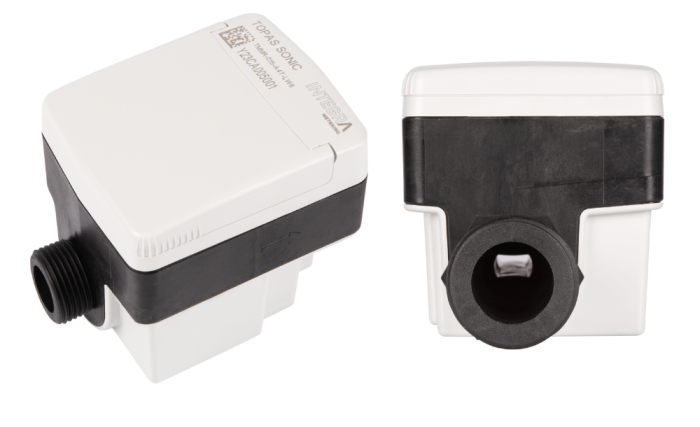

Our new ultrasonic smart water meter, in composite, for residential and cold water applications
Ultrasonic (static) meter (no moving parts) for smart metering applications
Free flow technology: no reflectors in the pipe
No dirt adhesion, more precise, lower pressure drop
Multiple networks ready
• LoRaWAN (LoRa Alliance certified) and wireless M-Bus (OMS)
• MultiCom enabled (simultaneous LoRaWAN and w-MBus) for flexible evolutions
ParamApp ready
• Easy configuration/diagnostics on the field with the user friendly ParamApp application
Smart meter
• A lot of available information, and a full panel of events detections to manage the network (leakage, burst, overload, water temperature, reverse flow)
Robust: IP68, up to 15 years lifetime, tamperproof by design
• Nominal diameter DN 15
• Nominal pressure PN 16 bar
• Medium Temperature: 0.1°C to + 50°C
• Ambient Temperature: -10°C to + 55°C
• Storage Temperature: -10°C to + 70°C
• High measuring dynamics (R500/R800)
• Protection class: IP 68
• Pipe material : PA12 – 65 GF
• Long battery lifetime: up to 15 years
• Wireless M-Bus 868 MHz T1 mode (OMS v4)
• Wireless long range communication: LoRaWAN
• MultiCom enabled (simultaneous LoRaWAN and wM-Bus 868 MHz)
• NFC interface for configuration with the “ParamApp” application
• ParamApp is available for Android devices on Google Play
• Powerful data and event logger embedded
• MID 2014/32/UE certified and potable water approval (ACS, WRAS, SVGW, BELGACQUA)
